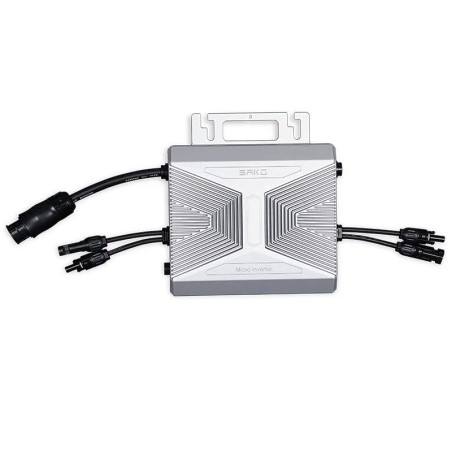

micro onduleur sako 800W

Model : SKY800M1-EU-230

Input Data (DC)

Commonly used module power (W) : 210 to 550W+ (2 Pieces)

Maximum input voltage (V) :  60V

MPPT voltage range (V)  :  25~55V

Start-up voltage (V)  :  25V

Maximum input current (A)   :  2×13A

Maximum input short circuit current (A) :  2×19.5A

Number of MPPTs   :  2

Number of Inputs per MPPT  :  1

Output Data (AC)

Rated output power (VA)  :   800W

Rated output current (A)  : 3.6A-3.5A

Nominal output voltage/range (V) : "220V/ "230V/   180-275V"

Nominal frequency/range (Hz) 50/48~52Hz or 60/58~62H

Power factor :  >0.99

Total harmonic distortion  :  < 3%

Maximun units per 12 AWG branch :  6

Efficiency

CEC peak effi ciency  :  96.50%

Nominal MPPT efficiency  :  99%

Night power consumption (mW)   :  <50mW

Mechanical Data

Ambient temperature range (℃)   :  -40~65℃

Enclosure rating :  IP67

Cooling :  Cooling Natural convection-No fans

Features

Communication :  WiFi

Compliance :  "EN 50549-1: 2019, VDE-AR-N 4105: 2018, IEC/EN 62109-1/-2,    IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3"

Warranty  :  10 years
